> For the complete documentation index, see [llms.txt](https://docs.heisenware.com/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.heisenware.com/heisenware-product-docs.md). # Heisenware Product Docs **Heisenware is the industrial application platform for engineers who build real software.** It combines the speed of visual development with the power of a full-stack environment. Unlike restrictive no-code tools, Heisenware exposes a sophisticated, distributed architecture designed for industrial scalability. It allows you to build, deploy, and manage production-grade applications without the overhead of boilerplate code and complex infrastructure setup. ## The platform at a glance Heisenware is divided into three core components that cover the entire application lifecycle:
Cover image

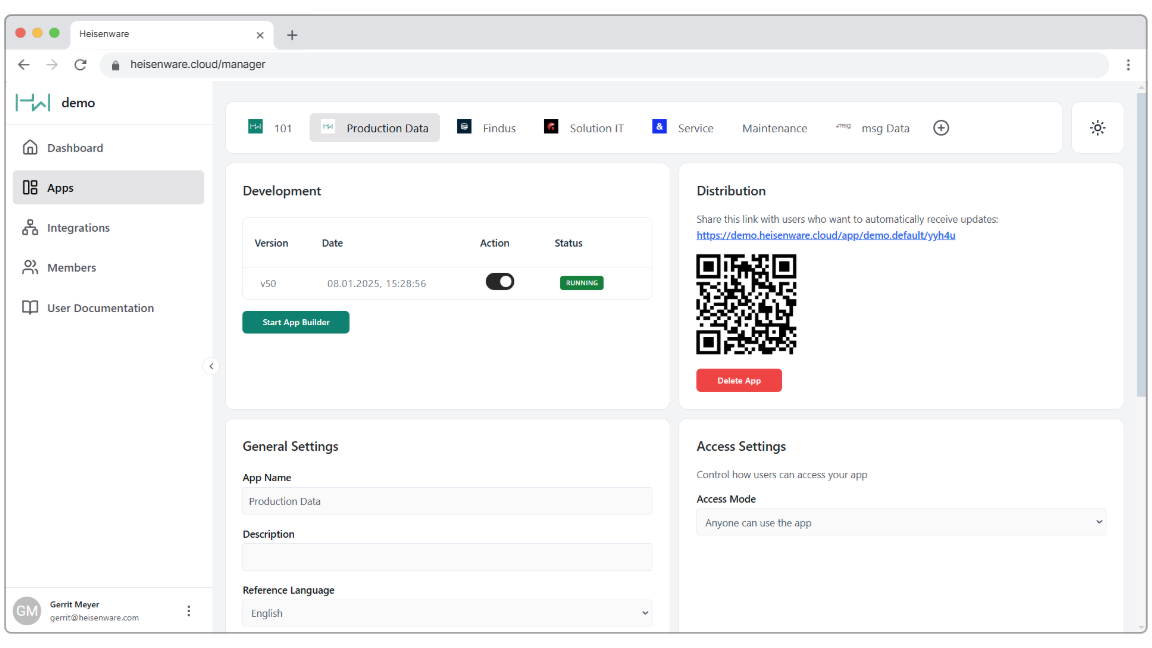

APP MANAGERAdmin dashboard to create and manage apps, members, and integrations./pages/75VC4gL4jPf6FlIpuBiW/files/cr5RVc6CpAqDWMy4FUQ0

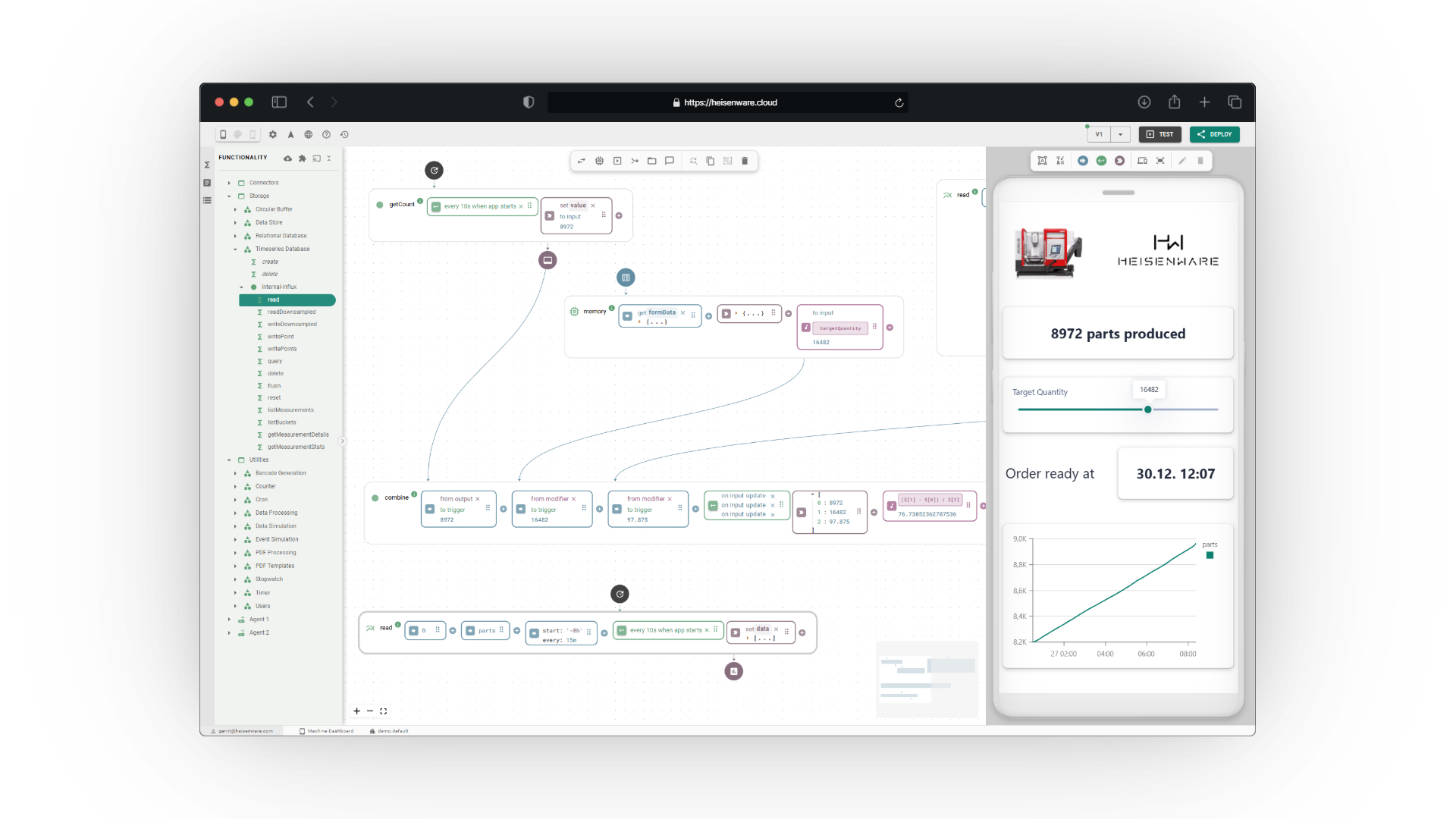

APP BUILDERVisual programming interface to build and test custom software applications./pages/5GLKx75UcMkzot67o9QG/files/6W3rvaGXraXKqGjtxV3W

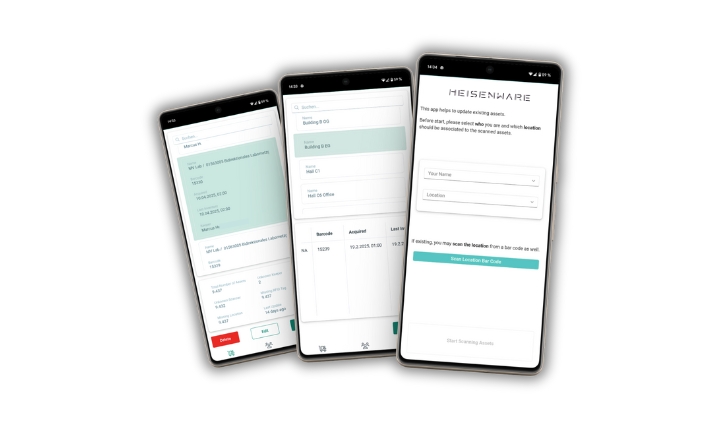

PRODUCTION APPSThe live, end-user-facing applications created and run with Heisenware./pages/fnBHDRpDhma5KsjvojOu/files/rVOh6wx1SxKxyrdeykOc
### Hosting & architecture The [Heisenware architecture](/account/hosting-and-architecture.md) consists of the central platform and optional agents. Each account (tenant) runs in isolation and supports two deployment modes: * **Cloud deployment**: The recommended way to use Heisenware. Your apps are hosted by us on Hetzner Online GmbH in Germany. * **On-premises deployment**: You run the entire platform as a Docker application on your own local servers or private cloud. Regardless of the deployment mode, you can use [Edge Agents](/app-builder/build-backend/function-explorer/agents.md) to bridge separated networks. For example, if you host the platform in a corporate data center (IT) and need to access machines in a secured shopfloor network (OT), an agent acts as the secure tunnel. ### See it in action See how to build and operate industrial applications in Heisenware. {% embed url="" %} ## Engineering philosophy & core concepts Heisenware is not just a drag-and-drop interface. It is a visual programming environment. Mastering the platform requires understanding the engineering concepts we expose rather than hide. ### Transparency & flexibility Standard no-code platforms often act as "black boxes" by abstracting complexity so heavily that you hit a wall when you need custom logic. Heisenware operates transparently. * **Visual, yet code-capable:** You build logic visually using the Flow builder, but you retain direct access to developer tools like JavaScript expressions for data transformation and YAML for configuration. * **No "no-code cliff"**: When pre-built Functions aren't enough, you don't hack workarounds. You extend the platform by wrapping your code (Node.js, Python, C++) into extensions that become native Functions. ### Object-oriented scalability Unlike linear scripting tools that struggle to manage multiple devices, Heisenware uses a strict object-oriented model. This allows you to build logic once and instantiate it across an entire fleet. * **Classes (the blueprint)**: Reusable logic definitions (e.g., an `email` class or a generic `Machine` connector). * **Instances (the asset)**: Living, stateful copies of a class. You don't write code for "Machine A". You instantiate the `Machine` class with Machine A's specific IP and credentials. * **Stateful context**: Member functions know their context (e.g., *which* server to use) without passing global variables. ### Native event-driven architecture Industrial systems are asynchronous. Sensors spike, users click, and machines stop at unpredictable times. Heisenware applications are natively event-driven. * **Reactive logic**: Backend flows do not run in a linear loop. They sit dormant until a specific trigger (an event) fires. * **Event sources**: Triggers can be user interactions (UI events), data changes (e.g., a PLC tag update), or system lifecycle events. * **Non-blocking**: This ensures your UI remains responsive while backend logic handles complex tasks asynchronously. ### Distributed connectivity We solve the "OT vs. IT" network gap by treating local hardware as a first-class citizen of the cloud platform. * **The bridge**: Through Native Agents and Docker agents, we securely bridge local, private networks (OT/Shopfloor) to the cloud without VPNs. * **Local execution**: You can push backend logic (connectors) to run *locally* on the edge device. The platform treats these remote Functions the same as cloud Functions. ### Unified data binding We eliminate the "glue code" typically needed to connect a frontend to a backend. * **Direct linking**: In the App Builder, you connect a backend Function's output directly to a frontend widget's property. * **Reactive UI**: When backend data changes (e.g., a new sensor reading), the bound UI widget automatically re-renders to reflect the new state.
## Glossary of Terms A quick-reference list of specific terms and concepts used across the Heisenware platform. | Term | Description | | ----------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | | **Account** | The top-level organizational container representing a tenant (e.g., `acme.heisenware.cloud`). It houses all workspaces, members, and shared resources. | | **Agent** | A secure, industrial-grade bridge running as a local service (Native, Docker, or LXC) within a private network. It securely tunnels data from local edge protocols (e.g., OPC UA, Modbus, S7) to the cloud workspace. | | **App** | A standalone, Progressive Web App (PWA) software application built, tested, and deployed entirely within Heisenware. | | **App Builder** | The comprehensive visual development environment where Members design, build, test, and deploy applications. | | **App Manager** | The central administrative dashboard for managing accounts, workspaces, apps, members, and inbound integrations. | | **Backend Builder** | The infinite canvas within the App Builder where developers create event-driven business logic by wiring together Functions into reactive flows. | | **Code Adapter** | Developer-written code (using Node.js, Python, C++, etc.) that wraps existing software libraries or algorithms so they can be integrated into Heisenware as Custom Extensions. | | **Custom Extension** | A containerized module (typically built via a Code Adapter) loaded into the platform to expand native functionality with custom, proprietary backend tools. | | **Deployment** | The process of publishing a specific version of an app, transitioning it from the App Builder environment to a live state accessible to Users. | | **Domain** | The unique identifier combining your account and workspace (e.g., `acme.default`) used for internal routing and API integrations. | | **Event** | A specific trigger—such as a user click, a data update, or a schedule interval—that initiates the execution of a Function flow in the backend. | | **File Explorer** | The panel in the App Builder used to upload, store, and manage static assets and files (e.g., images, CSVs, PDF templates) for use in your applications. | | **Filter** | A Function extension that evaluates a boolean JavaScript expression to act as a logical gate, conditionally halting or allowing the continuation of a data flow. | | **Flow** | A reactive, event-driven sequence of connected Functions executing business logic in the Backend Builder. | | **Frontend Builder** | The page-specific visual design canvas within the App Builder where developers compose responsive user interfaces using widgets and static elements. | | **Function** | An atomic, visual building block in the Backend Builder representing executable code that performs specific tasks (e.g., database queries, API calls, hardware control). | | **Function Explorer** | The structural repository panel in the App Builder containing all available Functions, organized by categories like Connectors, Storage, Utilities, and Extensions. | | **Integration** | A configured, authorized entry point allowing external systems, MQTT clients, or VRPC clients to securely send data to a Heisenware workspace. | | **JavaScript Expression** | Standard JavaScript logic evaluated on-the-fly within Modifiers or Filters to perform calculations, condition checks, or array manipulations. | | **JSONata** | A lightweight query and transformation language natively supported in Heisenware for efficiently restructuring JSON data payloads. | | **Member** | A developer, engineer, or administrator with access to the Heisenware platform to build and manage applications (strictly distinct from a User). | | **Modifier** | A Function extension that transforms or reshapes data on-the-fly as it passes from one Function to the next within a flow. | | **Page Explorer** | The panel in the App Builder used to structure an application's hierarchy by creating, duplicating, and organizing pages and subpages. | | **Property** | A configurable setting of a UI widget that determines its behavior, data binding, or visual appearance. | | **PWA (Progressive Web App)** | A modern web application standard that provides a native app-like experience (installable, responsive, offline-capable) directly from any web browser. | | **Tag (Versioning)** | A named, point-in-time snapshot of an app's configuration (logic, UI, and bindings) that can be exported, restored, or used as a template blueprint. | | **User** | An end-user who logs in or otherwise interacts with a live, published Heisenware app (strictly distinct from a Member). | | **VRPC (Variadic Remote Procedure Call)** | The open-source, asynchronous communication protocol over MQTT that powers all distributed data exchange and remote function calls within the Heisenware ecosystem. | | **Widget** | An interactive or display-oriented visual component (e.g., a chart, button, or form) placed in the Frontend Builder to construct the user interface. | | **Workspace** | A dedicated sub-container within an Account used to securely isolate related apps, databases, files, and members from one another. | | **YAML** | A human-readable data serialization language used extensively in the Backend Builder for quickly configuring static Function inputs and data structures. | --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter, and the optional `goal` query parameter: ``` GET https://docs.heisenware.com/heisenware-product-docs.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is optional and describes the broader end goal you are ultimately trying to accomplish on behalf of the user. GitBook uses it to tailor the answer towards what is most useful for that goal. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
