The MediaView widget is a versatile component designed to display various types of media, including images (PNG, JPEG, GIF, SVG) and PDF documents.
It can intelligently handle different data formats, such as Base64 strings, file objects, or direct URLs, making it a flexible solution for rendering visual content within your application.
Data Binding
Connect the widget to your application's logic by dragging the corresponding items from the Flow Builder.
Output
Property
Type
Description
data
String or Object
Provides the media content to be displayed. See the Data Formats section for details.
clear
Boolean
When true, clears the currently displayed media.
Data Formats
The data property is highly flexible and can interpret several formats to render media:
Base64 String: A raw Base64-encoded string. The widget will automatically detect the MIME type (e.g., image/png, application/pdf).
File Base64 Object: An object containing base64 and type properties (e.g., { base64: '...', type: 'image/jpeg' }).
File Path Object: An object containing path and type properties, pointing to a file on the Heisenware media server.
Media Server Path: A direct string path to a file on the media server (e.g., /shared/runtime-files/image.png).
URL: A direct public URL to an image or PDF file.

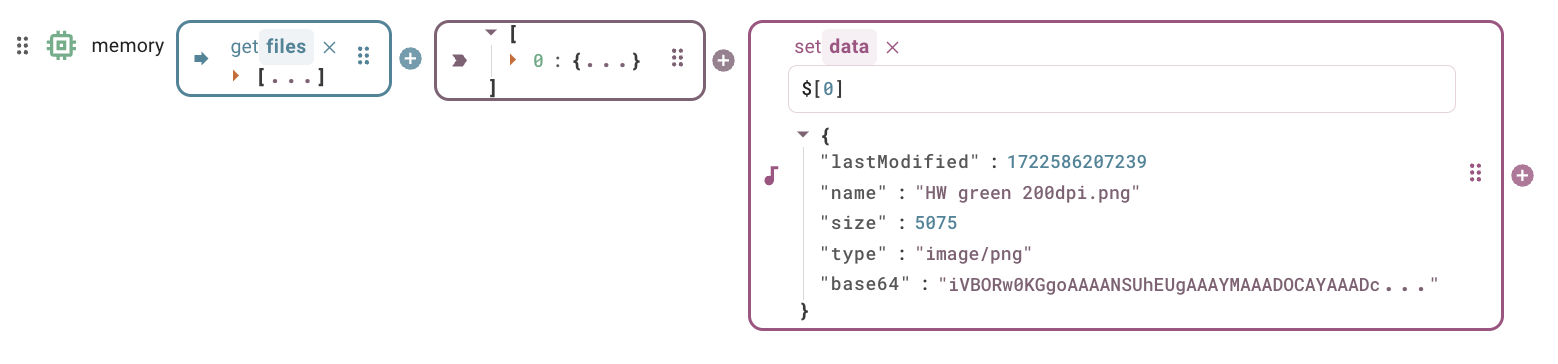

A function with an image connected to the Media View. The modifier retrieves the content of the output array.
Dragging a file from the media server into memory and using it as is also works
Configuration
Settings
These properties control how the media is displayed within the widget's boundaries.
Label
Description
Type
Property
Image Fitting
Controls how the image should be resized to fit its container. Contain fits the entire image, Cover fills the container (cropping if necessary), and Fill stretches the image.
String
objectFit
Rounded Corners %
Applies a border radius to the media, making the corners rounded. The value is a percentage of the smaller dimension.
