# PDF templates

The PDF template class generates PDF documents by merging App data with layouts designed in the [PDF Template Editor](/app-builder/build-frontend/pdf-template-editor.md). Each template operates as an instance that contains the `fillTemplate` function for its layout. This class requires an instance. The code class name is `PdfTemplate`.

### `fillTemplate`

Merges data with the pre-designed layout and generates a completed document.

#### Parameters

<table><thead><tr><th width="150">Input</th><th width="120">Key</th><th>Description</th><th width="100">Type</th></tr></thead><tbody><tr><td><code>values</code></td><td></td><td>A data object containing key-value pairs. The keys must exactly match the variable names configured for placeholders in the <a href="/app-builder/build-frontend/pdf-template-editor.md">PDF Template Editor</a> (such as <code>firstName</code> or <code>orderDate</code>). Supports nested objects.</td><td>object</td></tr><tr><td><code>options</code></td><td><code>showEmptyVariables</code></td><td>Displays the variable name in angle brackets (such as <code>&#x3C;firstName></code>) for placeholders without a value. If false, leaves them empty. Default false.</td><td>boolean</td></tr></tbody></table>

#### Output

Returns the populated PDF document as a base64-encoded string. If rendering fails, the function returns nothing and the error appears in the log. During development, the function node displays a preview of the rendered PDF layout. Store the output in a [database](/app-builder/build-backend/functions/storage/relational-database.md), display it in a media view widget, or send it as an [email](/app-builder/build-backend/functions/connectors/email.md) attachment.

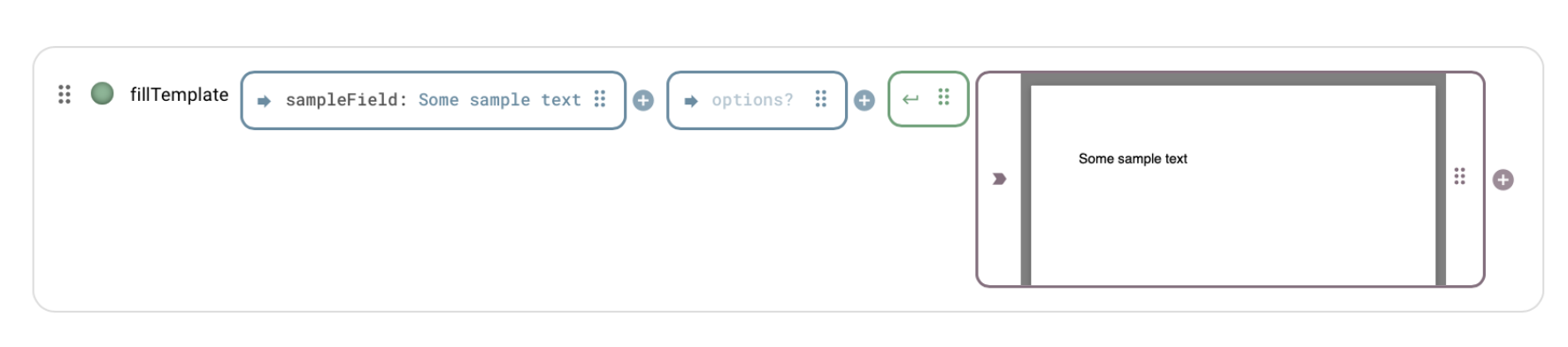

<figure><img src="https://3495989837-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FE5Ketpww1s7TauSAJrJ8%2Fuploads%2Fgit-blob-bb94833f8717a0cfba63970f025552b164207f35%2FScreenshot%202025-02-20%20at%2016.10.48.png?alt=media" alt=""><figcaption><p>The fillTemplate function node preview</p></figcaption></figure>

{% hint style="info" %}

#### Document generation

Each execution generates a new document and populates the entire template in a single operation. For templates with multiple fields, assemble the required data into a single structured object before passing it to the function.
{% endhint %}

#### Example

**Fill template layout**

```yaml
# values
name: John
surname: Doe
signature: iVBORw0KGgoAAAANSUhEUg...
# options
showEmptyVariables: true
```

## Full tutorial

See the step-by-step tutorial to build a dynamic acceptance report from start to finish:

[From Data to Document: Automating PDF Reports](/tutorials/app-templates/automating-pdf-reports.md)


---
