> For the complete documentation index, see [llms.txt](https://docs.heisenware.com/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.heisenware.com/app-builder/build-backend/functions/utilities/data-processing.md). # Data processing The data processing utility class provides a collection of functions for common data manipulation, transformation, and logical operations. Use these functions to work with arrays and objects, handle JSON payloads, map numerical value ranges, and delay data flows. All functions in this class are static, meaning you do not need to create an instance before using them. The code class name is `Tools`. ### `echo` Returns the exact input value it receives. #### Parameters
InputDescriptionType
valueAny input argument to return.any
#### Output Returns the unchanged input value. ### `combine` Combines two or more arguments into a single array. Undefined values beyond the first two arguments are ignored. #### Parameters
InputDescriptionType
arg1, arg2, ...An arbitrary number of arguments to combine into an array.any
#### Example ```yaml # arg1 123 # arg2 "hello" # arg3 { "key": "value" } ``` #### Output Returns the combined array: ```json [ 123, "hello", { "key": "value" } ] ``` ### `mergeObjects` Merges two or more objects into a single new object. If the same key exists in multiple objects, the value from the last object in the argument list overwrites the previous values. The function ignores any arguments that are not plain objects (including arrays). #### Parameters
InputDescriptionType
arg1, arg2, ...Two or more objects to merge together.object
#### Example ```yaml # arg1 { "name": "John", "status": "active" } # arg2 { "status": "inactive", "id": 123 } ``` #### Output Returns the merged object: ```json { "name": "John", "status": "inactive", "id": 123 } ``` ### `arrayPush` Pushes one or more items to the end of an array. If an item is itself an array, the function unpacks its elements and adds them individually to the base array. If the first input is not an array, the function wraps it in one; `null` or an empty input starts a new array. #### Parameters
InputDescriptionType
arrayThe destination input array.array
itemsAny number of items to push to the end of the array.any
#### Example ```yaml # array [1, 2] # items [ 3, 4, [5, 6] ] ``` #### Output Returns the updated array: ```json [1, 2, 3, 4, 5, 6] ``` ### `mapRange` Maps a numerical value from an original range to a new range. The function rounds the final result to the nearest integer. #### Parameters
InputKeyDescriptionType
valueThe numerical value to map.number
optionsorigMinThe minimum value of the original range.number
origMaxThe maximum value of the original range.number
newMinThe minimum value of the new range.number
newMaxThe maximum value of the new range.number
#### Example Map a sensor value (0 to 1023) to a percentage scale (0 to 100): ```yaml # value 512 # options origMin: 0 origMax: 1023 newMin: 0 newMax: 100 ``` #### Output Returns the mapped integer value: `50` ### `delay` Returns the provided value after a configurable time delay. This function executes asynchronously. #### Parameters
InputKeyDescriptionType
valueThe value to return after the delay.any
optionstimeoutThe delay duration in milliseconds. Default 1000.integer
#### Output Returns the unchanged input value after the specified time delay. ### `areAllParamsTrue` Applies a logical AND operation. This function checks if the exact number of specified arguments are all truthy (not `false`, `0`, `""`, `null`, or `undefined`). #### Parameters
InputDescriptionType
nParamsThe exact number of arguments that must be provided and evaluate to truthy.integer
argsThe arguments to evaluate.any
#### Examples **Scenario 1: All elements match and evaluate to truthy** ```yaml # nParams 3 # args [true, "hello", 1] ``` Output: `true` (3 arguments were provided and all evaluate to truthy) **Scenario 2: Insufficient truthy parameters provided** ```yaml # nParams 3 # args [true, ""] ``` Output: `false` (only 2 truthy arguments were provided instead of 3) #### Output Returns `true` if all arguments match `nParams` and evaluate to truthy; otherwise, returns `false`. ### `isOneOrMoreParamTrue` Applies a logical OR operation. This function checks if at least one of the provided arguments evaluates to truthy. #### Parameters
InputDescriptionType
argsAny number of input parameters to check.any
#### Example ```yaml # args [false, 0, "hello", null] ``` #### Output Returns `true` if at least one argument evaluates to truthy (because `"hello"` is truthy); otherwise, returns `false`. ### `jsonStringify` Converts a JavaScript runtime value (such as an object or array) into a standard JSON string. #### Parameters
InputDescriptionType
valueThe JavaScript object or array to convert.any
#### Example ```yaml # value { "name": "John", "is_active": true, "roles": ["admin", "editor"] } ``` #### Output Returns the generated JSON string: `'{"name":"John","is_active":true,"roles":["admin","editor"]}'` ### `jsonParse` Converts a valid JSON string back into its corresponding JavaScript object or value representation. #### Parameters
InputDescriptionType
textA valid JSON string to parse.string
#### Example ```yaml # text '{"name":"John","is_active":true,"roles":["admin","editor"]}' ``` #### Output Returns the parsed JavaScript entity. Throws an error if the string is not valid JSON. ```json { "name": "John", "is_active": true, "roles": ["admin", "editor"] } ``` ### `flatten` Takes a nested JavaScript object and flattens it into a single-level object structure by generating dot-delimited keys. #### Parameters
InputKeyDescriptionType
targetThe nested target object to flatten.object
optionsdelimiterA custom delimiter string to separate keys instead of the default dot ..string
safeIf true, preserves arrays and their contents intact instead of flattening their indexes. Default false.boolean
maxDepthThe maximum number of nested levels to flatten.integer
#### Example ```yaml # target { "user": { "name": "John", "address": { "city": "New York" } }, "tags": ["a", "b"] } ``` #### Output Returns the flattened object: ```json { "user.name": "John", "user.address.city": "New York", "tags.0": "a", "tags.1": "b" } ``` ### `unflatten` The inverse operation of `flatten`. Takes a flat object containing delimited keys and converts it back into a deeply nested object structure. #### Parameters
InputKeyDescriptionType
targetThe flat target object to unflatten.object
optionsdelimiterA custom delimiter string to identify nested breaks instead of a dot.string
safeIf true, preserves arrays and their nested contents intact. Default false.boolean
objectIf true, prevents the automatic instantiation of arrays when unflattening. Default false.boolean
overrideIf true, overwrites existing keys if they cannot accommodate a newly encountered nested object value. Default false.boolean
#### Example ```yaml # target { "user.name": "John", "user.address.city": "New York" } ``` #### Output Returns the unflattened nested object structure: ```json { "user": { "name": "John", "address": { "city": "New York" } } } ``` ### `mergeArrays` Merges multiple arrays by combining the objects located at corresponding indexes. The function truncates the final output array to match the length of the shortest provided input array. Non-object elements are included with a key of an underscore `_` followed by the source array index. #### Parameters
InputDescriptionType
argsMultiple arrays of objects to merge together.array
#### Example ```yaml # args [ [ { "a": 1 }, { "b": 2 } ], [ { "c": 3 }, { "d": 4, "e": 5 } ] ] ``` #### Output Returns the merged index array: ```json [ { "a": 1, "c": 3 }, { "b": 2, "d": 4, "e": 5 } ] ``` ### `combineArrays` Combines multiple arrays similarly to `mergeArrays`, but appends an underscore `_` followed by the source array index to each object key. This prevents key collisions when the arrays contain objects with identical keys. #### Parameters
InputDescriptionType
argsMultiple arrays to combine.array
#### Example ```yaml # args [ [ { "value": 10 }, { "value": 20 } ], [ { "value": 30 }, { "value": 40 } ] ] ``` #### Output Returns the indexed combination array: ```json [ { "value_0": 10, "value_1": 30 }, { "value_0": 20, "value_1": 40 } ] ``` ### `groupArrays` Groups and merges objects compiled from multiple separate arrays based on a shared property key or an array of designated keys. This utility provides an efficient way to execute client-side joins across distinct data streams. #### Parameters
InputDescriptionType
keysThe property key string or array of key strings to group target data items by.string or array
argsMultiple arrays composed of data objects to group and merge.array
#### Example Grouping distinct collections using a shared `id` key: ```yaml # keys id # args [ [ { "id": 1, "name": "Alice" }, { "id": 2, "name": "Bob" } ], [ { "id": 1, "age": 25 }, { "id": 2, "age": 30 } ] ] ``` #### Output Returns the grouped and structurally merged array: ```json [ { "id": 1, "name": "Alice", "age": 25 }, { "id": 2, "name": "Bob", "age": 30 } ] ``` ### `renameObjectKeys` Generates a new object with renamed keys based on a specified mapping configuration. Keys not present in the mapping remain unchanged. #### Parameters
InputDescriptionType
objectThe target object whose keys require renaming.object
keyMappingA dictionary object where each key represents the original property string and its corresponding value defines the new key string identifier.object
#### Example ```yaml # object { "first_name": "John", "last_name": "Doe" } # keyMapping { "first_name": "firstName", "last_name": "lastName" } ``` #### Output Returns the object with updated keys: ```json { "firstName": "John", "lastName": "Doe" } ``` ### `base64Decode` Decodes a base64-encoded string back into its original text representation. #### Parameters
InputDescriptionType
base64StringThe base64 encoded source string.string
encodingThe character encoding of the returned string. Default utf8.string
#### Example ```yaml # base64String SGVsbG8gV29ybGQ= ``` #### Output Returns the decoded text string: `Hello World` ### `base64Encode` Encodes a plain text string or binary byte collection into a base64 string representation. #### Parameters
InputDescriptionType
bytesThe input text string or raw bytes to encode.any

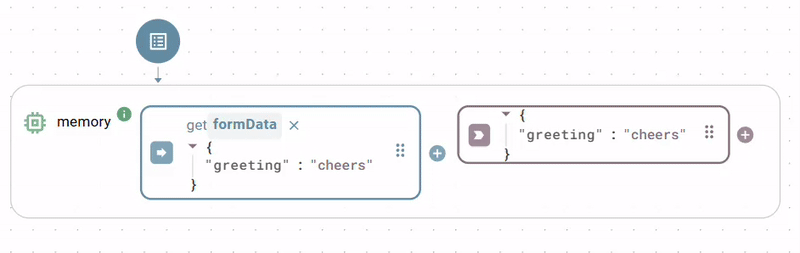

#### Example ```yaml # bytes Hello World ``` #### Output Returns the generated base64-encoded string: `SGVsbG8gV29ybGQ=` ### `memory` Passes its input value directly to its output immediately upon any input update. This function has input and output slots but no visible trigger; it behaves as if its trigger were permanently set to on input update.
#### Parameters
InputDescriptionType
valueAny input argument to pass through.any
#### Output Returns the unchanged input value. ### `trigger` A function without inputs. Use it to start flows manually or on a schedule via its trigger. #### Parameters None. #### Output Returns the current Unix timestamp in milliseconds. {% hint style="info" %} #### Toolbar shortcuts The Backend Builder toolbar includes shortcuts to create `memory`, `echo`, `combine`, and `trigger` nodes directly. {% endhint %} --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter, and the optional `goal` query parameter: ``` GET https://docs.heisenware.com/app-builder/build-backend/functions/utilities/data-processing.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is optional and describes the broader end goal you are ultimately trying to accomplish on behalf of the user. GitBook uses it to tailor the answer towards what is most useful for that goal. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
